High-Speed Wire Rod Coil Compactor & 4-Point Binding System
Technical analysis of wire rod coil compactor and 4-point automatic binding system for high-speed rolling mills. Hydraulic design, PLC control and performance standards explained.
TECH CENTER
Borton Engineering Team
2/15/20261 min read
Introduction: The Role of Coil Compaction in High-Speed Wire Rod Mills
In modern high-speed wire rod mills, the finishing and packaging section directly affects mill utilization rate and downstream logistics efficiency.
A coil compactor must not only secure the coil geometry but also operate continuously without becoming a production bottleneck.
The SGBD-4K/4600 Automatic Coil Compactor is engineered specifically for horizontal C-hook conveyor systems and high-capacity wire rod production lines
System Overview
The system performs:
Automatic coil compaction
4-point parallel wire binding
Fully automatic or manual operation
Integration with Power & Free conveyor systems
Typical cycle time for maximum coil:
≈ 35 seconds
This ensures compatibility with modern high-speed rolling mills.

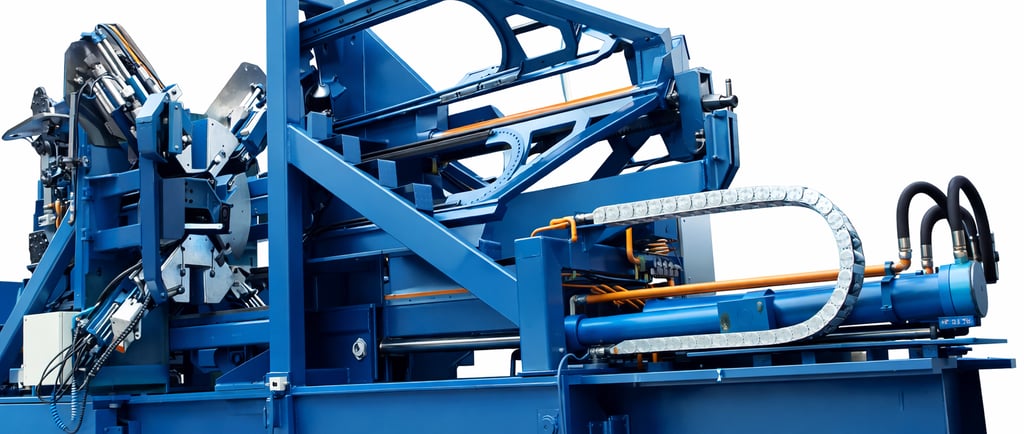

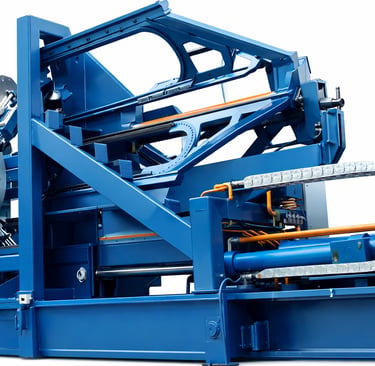

Mechanical Architecture: Dual Press Carriage Design
The compactor consists of two independent movable press carriages
Press Carriage No.1
Base frame
4 feeding units (KNC)
4 binding heads (KNA)
Press Carriage No.2
Movable press plate
Wire guide track system
Press force is adjustable:
75 kN – 400 kN
This configuration ensures:
Stable compaction
Reduced coil rebound
Accurate load distribution
Binding Technology: 4 Strong Parallel Knots
Binding wire specification:
6.3–7.3 mm (Q235)
Each KNA binding head performs:
Twisting
Cutting
Locking
Performance requirements include:
Binding failure rate < 2% per 1000 twist cycles
Knot tensile strength ≥ 90% of wire tensile strength
This guarantees downstream handling safety.
Hydraulic System: Heavy-Duty Steel Mill Configuration
Key parameters:
Working pressure: approx. 13 MPa (130 bar)
Design pressure: 250 bar
4 hydraulic pumps (one standby)
45 kW motors
Approx. 3000 L oil tank
The system is designed for:
Continuous operation
Pressure stability
Redundant reliability
Electrical & Automation
The control system includes:
Siemens PLC (S7 series)
Remote I/O (24V DC)
HMI operator interface
MCC cabinet
The system supports:
Automatic
Semi-automatic
Manual
With full diagnostic and status monitoring.
Performance Standards
Operational requirements:
Utilization rate ≥ 99%
Maximum coil cycle time ≈ 35 seconds
This positions the machine as a production-critical unit.
Engineering Considerations
When integrating into a rolling mill:
C-hook must be locked during compaction
Foundation alignment is critical
Hydraulic oil cleanliness must be controlled
Stable binding wire quality is required
Over 70–80% of hydraulic failures originate from oil contamination.
Conclusion
The SGBD-4K/4600 Coil Compactor is not merely packaging equipment.
It is a production stability system designed for:
High-speed wire rod mills
Continuous heavy-duty operation
Automated industrial control environments
For mills targeting high utilization rates and long-term reliability, a properly engineered coil compaction system is a strategic investment.
