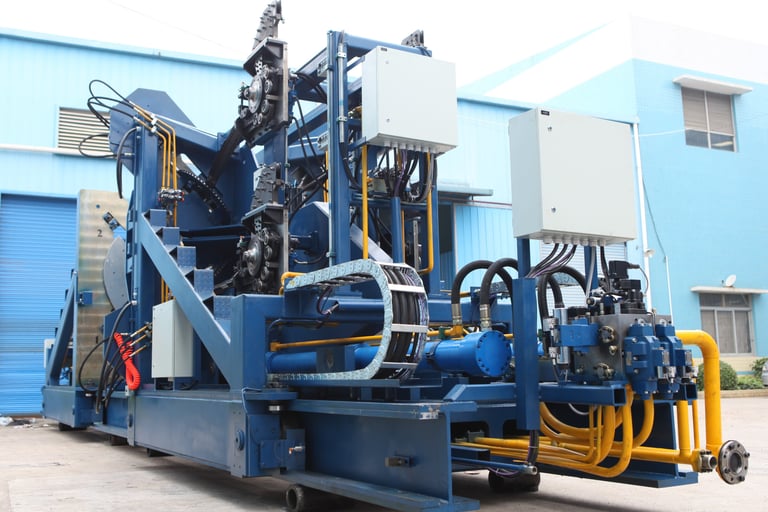

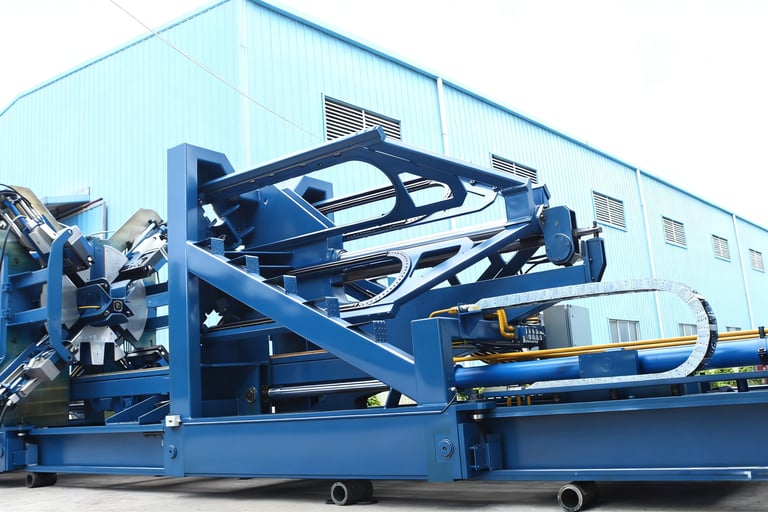

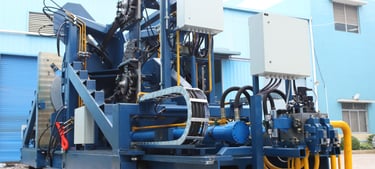

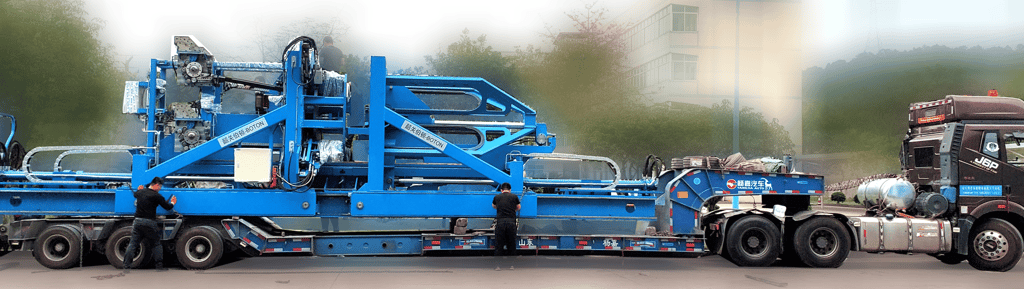

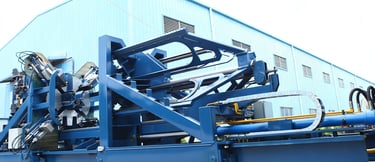

Wire Rod Bundling Machine for OEM Replacement Applications

The high-speed wire rod bundling machine is designed for automatic compacting and secure multi-point binding of wire rod coils in modern steel rolling mills.

The system ensures stable, clean, and consistent bundling under continuous operation conditions, making it ideal for high-capacity wire rod production lines and export-oriented coil handling.

Product Overview

This automatic wire rod bundling machine operates on C-hook conveyor systems and performs hydraulic compaction combined with parallel wire binding.

Designed with OEM-compatible interfaces, the machine can be integrated into new rolling mills or retrofitted into existing finishing lines with minimal modification.

Key Features

High-speed bundling with a stable cycle time of 32–35 seconds per coil
4-point parallel wire binding for uniform load distribution
Clean knotting technology without protruding wire ends
Reliable hydraulic compaction ensuring consistent coil geometry
Siemens PLC and HMI for monitoring, diagnostics, and parameter adjustment
OEM-compatible design for easy integration into existing C-hook systems
Heavy-duty mechanical structure with low maintenance requirements

Technical Specifications

Applicable product: Wire rod coils
Wire rod diameter: 5.5 – 16 mm
Coil weight: 1,000 – 2,300 kg
Outer diameter: approx. 1,250 – 1,400 mm
Inner diameter: approx. 750 – 1,100 mm
Minimum compressed coil height: approx. 650 mm
Binding wire diameter: 6.3 – 7.3 mm (Q235)
Number of bindings: 4 per coil
Bundling cycle time: approx. 32–35 s per coil
Operation modes: Automatic / Semi-automatic / Manual
Control system: Siemens PLC + HMI

Working Principle

Wire rod coil is positioned and locked on the C-hook at the bundling station
Automatic centering and hydraulic compaction are initiated
Wire guide track system closes around the coil
Automatic wire feeding, tightening, twisting, and cutting (4 bindings)
Track system opens and the machine returns to home position
Bundled coil is released for downstream conveying

Typical Applications

High-speed wire rod mills
Bar and wire rod finishing lines
Steel plants with C-hook conveyor systems
Export-oriented coil packaging and logistics systems

Why Choose Burton

Extensive experience in rolling mill equipment and automation
OEM and aftermarket manufacturing capability
Competitive investment cost with European-equivalent performance
Custom engineering based on mill layout and production capacity
Long-term spare parts supply and responsive technical support

Scope of Supply

Wire rod coil compactor and bundling machine
Hydraulic power unit
Binding heads and wire feeding units
Electrical control cabinet with PLC and HMI
Complete technical documentation in English

Optional systems available upon request: wire pay-off system, service platforms, spare and wear parts packages.

Looking for a Reliable Wire Rod Bundling Solution?

Contact us for technical discussion, layout review, and quotation.
OEM and retrofit solutions are available for both new and existing rolling mills.

[ Contact Us for Technical Proposal ]

→ Bar Bundling Machine

→ Spare Parts

Download PDF

For straight long products, please also refer to our bar bundling machine or view the bundling machine comparison.

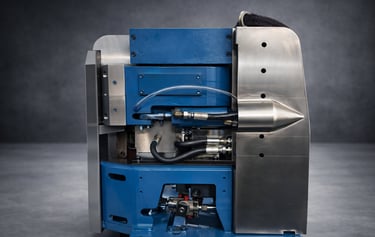

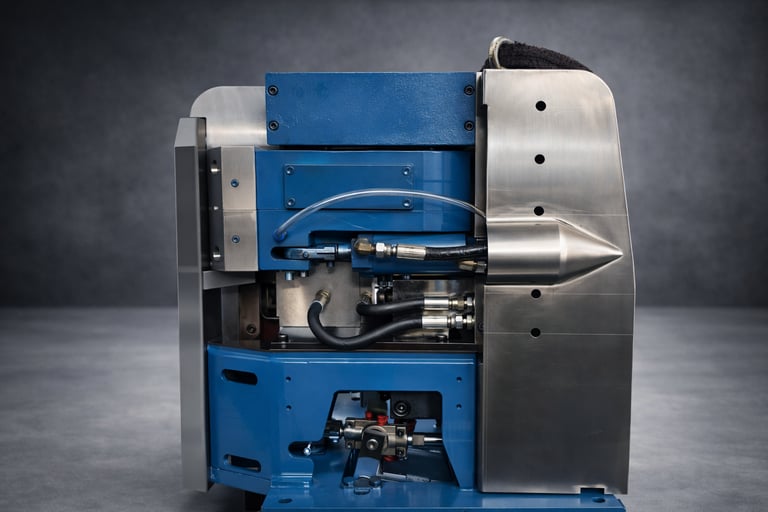

Bundling Head SUND BIRSTA 5000

Morgan-compatible bundling heads are available as OEM replacement solutions.

Legacy System Compatibility

This wire rod bundling machine is designed as an OEM-equivalent replacement solution for legacy European bundling systems,
widely installed in long-running wire rod and bar handling lines.

The mechanical concept and operating logic are fully compatible with older Scandinavian designs,
including systems originally supplied by Sund Birsta.

It allows steel plants to modernize or replace aging equipment without modifying existing layouts, conveyors, or control interfaces.

Q1: Can this bundling machine replace old Sund Birsta equipment?

A:
Yes. This bundling machine is designed as an OEM-equivalent replacement for legacy bundling systems originally supplied by Sund Birsta. It matches the original operating logic and mechanical interfaces, allowing direct replacement without major modifications.

Q2: Is this an original Sund Birsta machine?

A:
No. This is not an original Sund Birsta product. It is an independently manufactured system based on proven European bundling concepts, supplied as an aftermarket replacement solution.

Q3: What are the advantages compared with original equipment?

A:
Compared with original equipment, this system offers improved component availability, shorter delivery time, and easier maintenance, while maintaining full compatibility with legacy installations.
