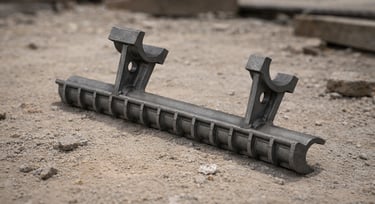

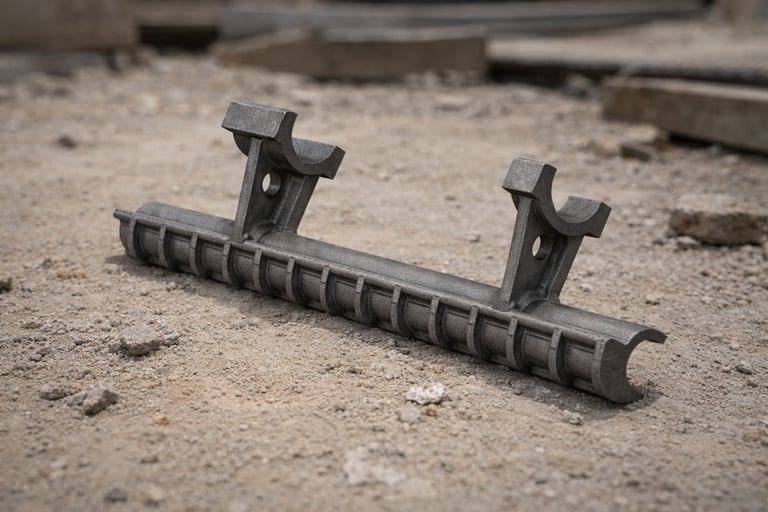

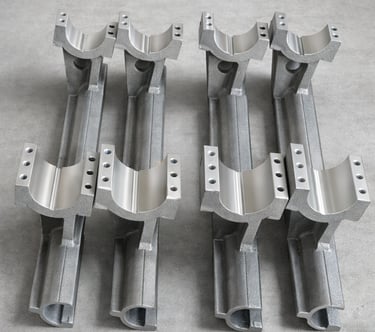

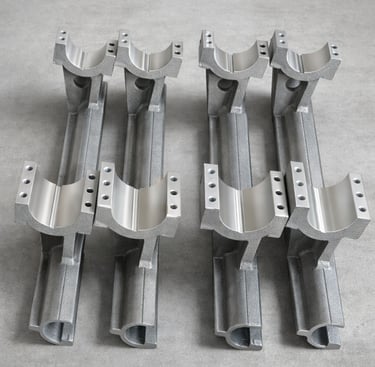

Twin Channel Tunnel Panel for Wire Rod Bundling Systems

Product Overview

The Twin Channel Tunnel Panel is a heavy-duty casting component designed for high-speed wire rod bundling and conveying systems.
It provides a stable dual-channel guiding structure for hot wire rod transportation, ensuring smooth material flow, equipment protection, and long-term operational reliability in harsh rolling mill environments.

Application

Wire Rod Bundling Machines
Wire Rod Transfer & Conveyor Lines
Cooling Bed Discharge Systems
High-speed Rolling Mill Finishing Areas
Technical Specifications
ItemSpecificatio

Technical Specifications

Component Name: Twin Channel Tunnel Panel
Application: Wire Rod Bundling Machine
Drawing No.: 4.850445.E
Material: Ductile Cast Iron (EN-GJS-800-2)
Manufacturing Process: Casting + Precision Machining
Net Weight: As per drawing
Installation Area: Tunnel section of bundling line

Key Features

Dual-channel structure for stable wire rod guidance
High-strength ductile iron for thermal shock resistance
Optimized casting geometry for long service life
OEM-equivalent dimensions and interchangeability
Suitable for continuous heavy-duty rolling mill operation

OEM & Replacement Capability

We manufacture OEM-equivalent and customized Twin Channel Tunnel Panels based on customer drawings, samples, or site conditions.
Material grade, machining allowance, and surface condition can be adjusted according to operating requirements.
