Rolling Mill Straightening Plate Grid (Zigzag Type Straightening Plate)

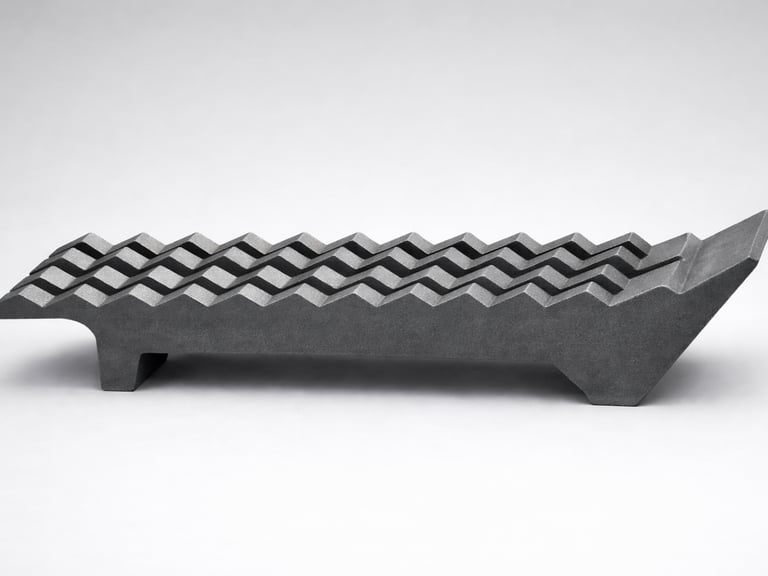

The rolling mill straightening plate grid is a heavy-duty cast component used in bar and wire rod rolling mills to stabilize and guide hot material during conveying and straightening processes. It features a zigzag contact profile designed to control material movement, reduce vibration, and improve straightness before downstream processing.
This component is typically installed after roughing or intermediate stands, where steel bars or wire rods are still at high temperature and subject to deformation forces. The straightening plate grid plays a critical role in maintaining consistent product quality and protecting surrounding equipment from abnormal material behavior.
Application Areas
Bar rolling mills, wire rod rolling mills, roughing and intermediate mill sections, and material conveying and straightening systems operating under high load and high temperature conditions.
Design & Structural Features

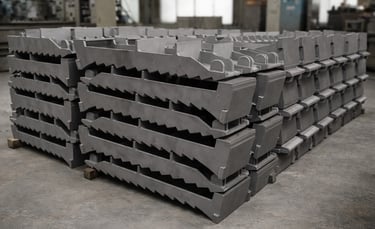

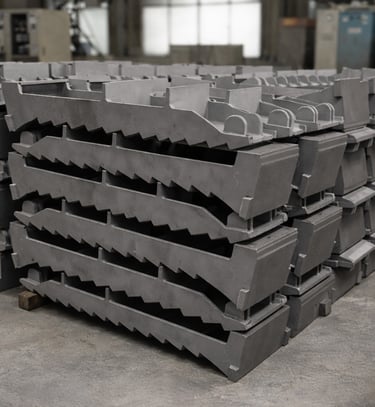

The straightening plate grid adopts a zigzag tooth profile to provide controlled contact with the moving material. This design allows gradual correction of material trajectory while avoiding sudden impact or surface damage. The solid cast body ensures high mechanical strength and long service life.
Material & Manufacturing
Manufactured using high-quality alloy cast steel or ductile iron, followed by precision machining of functional surfaces. Material grade, hardness range, and heat treatment are supplied in accordance with customer drawings and operating requirements.
OEM Replacement Capability
Supplied as an OEM-equivalent replacement component, manufactured strictly according to original drawings. Full interchangeability with existing rolling mill equipment is ensured through dimensional accuracy and quality control.
Delivery & Technical Support

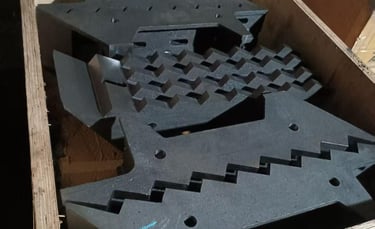

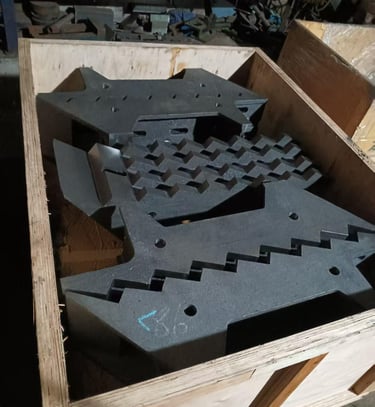

Components are supplied as matched sets and delivered in reinforced wooden cases. Technical support is provided for drawing review, customization, and production coordination.
